| Product Name: | CNC Centerless Grinding Machine | Grinding Wheel Size: | 610*305*304.8mm |
|---|---|---|---|
| Grinding Wheel Width: | 305mm | Grinding Wheel Motor Power: | 2-7.5kw |
| Grinding Wheel Speed: | 3000-6000rpm | Grinding Wheel Spindle Center Distance: | 200-300mm |
| Grinding Wheel Spindle Center Distance Adjustment Accuracy: | 0.01mm | Grinding Wheel Spindle Center Distance Adjustment Method: | Manual |
| Grinding Wheel Spindle Center Distance Adjustment Motor Power: | 2-7.5kw | Grinding Wheel Spindle Center Distance Adjustment Range: | 0-100mm |
| Grinding Wheel Spindle Center Distance Adjustment Speed: | 0-1000rpm | Grinding Wheel Spindle Center Height: | 100-200mm |
| Grinding Wheel Spindle Motor Power: | 2-7.5kw | Grinding Wheel Spindle Speed: | 3000-6000rpm |
| Grinding Wheel Spindle Taper: | Morse #4 | Grinding Wheel Width: | 20-50mm |
| Highlight: | High Precision CNC Centreless Grinder,Form Grinding Centreless Grinder,High Precision Centreless Grinder |
||

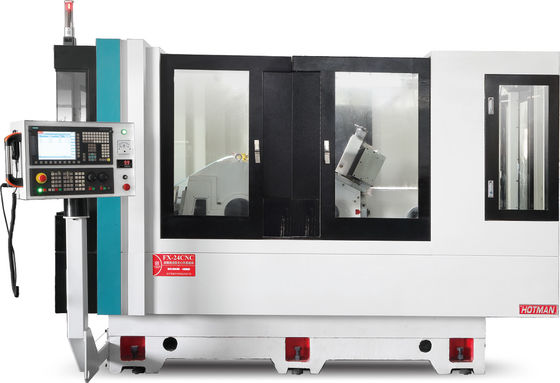

High Precision CNC Centreless Grinder, Manual Practical Wear Resistant Grinding Machine FX-24CNC
Device description:
1. The body and components are cast by Milhanna high grade cast iron FC30, which is artificially normalized heat treatment and then treated by natural aging. Components are processed by YASDA, MITSUI SEIKI, TOSHIBA, ELB and other world-class equipment once clamping processing. Precision size can be up to micron level, to ensure high precision equipment basic components.
2.Equipped with Siemens 828D CNC automatic grinding system, and secondary development, man-machine dialogue fool operation, with many optional equipment to choose from, including inner hole grinding device, automatic end measuring device, automatic outside diameter measuring device, etc.
3. Machine guide rails and precision ball screws are continuously lubricated by automatic lubrication system to ensure longer service life and accuracy. The cooling system is separated from the body to eliminate vibration and favorable heat dissipation.
4. The grinding feed system is composed of a V and a flat track of hand-crafted precision shovel, with automatic lubrication system and C3 level precision grinding ball screw, which can achieve smooth movement, excellent repeated positioning accuracy and long track life.
5. The standard configuration of the grinding wheel spindle is rear four and rear two bearing structure. High precision dynamic and static pressure spindle can also be selected, which has the characteristics of high rotation precision, high dynamic stiffness, good vibration resistance, high grinding efficiency and good grinding surface quality. For special work-piece grinding, the grinding wheel speed can be adjusted, up to 3500 RPM and 60m/s.
6.Siemens numerical control system as the standard configuration, after secondary development, all Chinese operation interface, easy to use. Equipped with Siemens high performance servo motor, the equipment CNC system and drive system have better compatibility, at the same time with automatic sand repair and automatic compensation function, to ensure the stability and precision of feed and grinding.
Technical specification:
| Project | Unit | Model:FX32P-60CNC | |
|
Processing capacity
|
Maximum rotating diameter of table | mm | 320 |
|
Maximum distance between two thimbles |
mm | 600 | |
| Maximum grinding diameter | mm | 320 | |
| Maximum load between two parietal hearts | Kg(b) | 60(top work)/20 (working head only) | |
| Grinding wheel size (diameter × width × aperture) | mm | 455×38(32-50)×127 | |
| Grinding wheel speed | rpm | 1650 | |
| Maximum linear speed of grinding wheel | m/s | 40(high speed grinding wheel up to 65) | |
| Grinding wheel dressing | mm | Automatic type | |
|
Grinding wheel head |
Feed Angle | Deg | 90 |
| Feed stroke | mm | 250 | |
| X axis fast moving speed | m/min | 6 | |
| Minimum X-axis feed | mm | 0.001 | |
|
Head frame |
Spindle speed | rpm | 50-500 |
| Spindle form | Simultaneous or centering | ||
| Thimble specification | MT-4 | ||
|
Tail seat |
Automatic telescopic distance | mm | 40 |
| Thimble specification | MT-4 | ||
|
worktable |
Z axis fast moving speed | m/min | 8 |
| Minimum z-axis feed | mm | 0.001 | |
| Maximum travel | mm | 550 | |
| Angle of rotation | Deg | + 6/-9 | |
|
Motor |
Grinding wheel spindle motor | KW | 3.75/5.5 |
| X-axis feed motor (servo) | KW | 2.2 | |
| Z-axis feed motor (servo) | KW | 2.2 | |
| Head frame spindle motor | KW | 0.75 | |
| Cooling pump motor | KW | 0.75 | |
| Lubricating oil motor | KW | 0.25*2 | |
| Tail stock oil pump motor | KW | 0.75 | |
|
Other |
Net machine weight | Kg | 3300 |
| Gross machine weight | Kg | 3500 | |
| Package size (length * width * height) | mm | 2800*2000*2000 | |
Standard accessories:
|
NO. |
Project |
Place of origin |
Factory/Model |
Quantity |
| 1 |
Grinding wheel/regulating wheel spindle |
China | Hotman | 2 pieces |
| 2 | Grinding wheel motor | /aiwan | 1group | |
| 3 |
Guide wheel servo motor |
aiwan | TaiDa | 1set |
| 4 | Ball screw | Japan | THK | 3pieces |
| 5 |
Numerical control system |
Germany/Taiwan |
Siemens/New Generation |
1set |
| 6 | Servo motor |
Germany/Taiwan |
Siemens/New Generation |
3 groups |
| 7 |
Standard grinding wheel |
Shanghai | 1 piece | |
| 8 | Standard guide wheel | Taiwan | 1piece | |
| 9 |
Hydraulic workstation (oil tank and oil pump, oil pump motor) |
Taiwan | OMAX | 1 group |
| 10 | Diamond knife pen | Taiwan | 2 pieces | |
| 11 | Water tank and pump | Taiwan | BAOYUAN | 1 set |
| 12 |
Electronic control system |
Beijing | 1 set | |
| 13 | Working lamp | Shenzhen | 1 group | |
| 14 |
Stop the tool holder, stop the standard tool plate |
Guangdong | Hotman | 1 set |
| 15 |
Through the tool rest, through the standard knife plate |
Guangdong | Hotman | 1 set |
| 16 |
Flange drawing tool group |
Guangdong | Hotman | 1 set |
| 17 |
Toolbox and maintenance tools |
Guangdong | Hotman | 1 set |
| 18 | Machine tool horizontal foundation screws and foundation foot pads | Guangdong | Hotman | 1 set |
