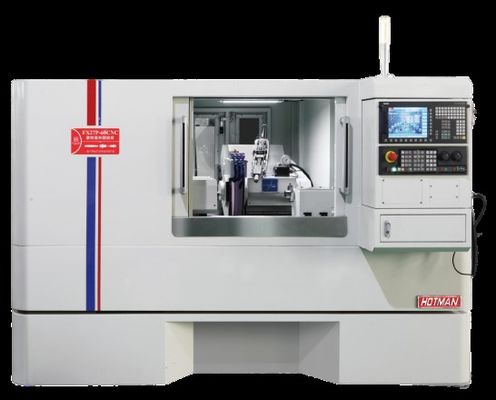

CNC Cylindrical Grinder Machine 600mm Max Grinding Length 1650rpm

CNC Cylindrical Grinder Machine 600mm Max Grinding Length 1650rpm
CNC Cylindrical Grinder Machine 600mm Max Grinding Length 1650rpm

Large Image :  CNC Cylindrical Grinder Machine 600mm Max Grinding Length 1650rpm

Product Details:
Place of Origin: China
Brand Name: HOTMAN
Certification: CE
Model Number: FX27-60CNC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: RMB1/SET
Packaging Details: WOODEN BOOX
Delivery Time: 60DAYS
Payment Terms: T/T
Supply Ability: 30
Contact Now
Detailed Product Description
Maximum Load Capacity: 60kg (top Center) 20kg (working Head) Grinding Wheel Bore: 32mm
Type: CNC Cylindrical Grinder Machine Gross Weight: 1800kg
Grinding Wheel Diameter: 200 Mm Grinding Wheel Spindle RPM: 1650rpm
Table Swivel Speed: 0.1-1.5rpm Grinding Wheel Thickness: 20mm
Highlight:

CNC cylindrical grinder machine 600mm

,

cylindrical grinder machine 1650rpm

,

CNC grinding machine with warranty

CNC Cylindrical Grinder Machine - 380V with 0.1-1.5rpm Table Swivel Speed
Key Specifications
Attribute Value
Maximum Load Capacity 60kg (top Center) 20kg (working Head)
Grinding Wheel Bore 32mm
Type CNC Cylindrical Grinder Machine
Gross Weight 1800kg
Grinding Wheel Diameter 200mm
Grinding Wheel Spindle RPM 1650rpm
Table Swivel Speed 0.1-1.5rpm
Grinding Wheel Thickness 20mm
Product Overview
The CNC Cylindrical Grinder Machine is a precision grinding solution featuring advanced CNC technology for automated operation and consistent high-quality results. With a 600mm maximum grinding length and 20mm grinding wheel thickness, this machine handles both small and large components with exceptional accuracy.
Key Features
  • CNC-controlled operation with Siemens numerical control system
  • High precision bearing structure for Z axis travel
  • Variable table angle grinding wheel table
  • Diamond grinding wheel material for superior performance
  • 16 Kw power output for efficient operation
  • 0.1-1.5rpm adjustable table swivel speed
Technical Parameters
Parameter Value
Maximum Grinding Length 600mm
Numerical Control System Siemens
Grinding Wheel Material Diamond
Power 16 Kw
Operating Voltage 380V
Applications
This precision cylindrical grinder is ideal for metalworking shops, manufacturing plants, tool and die shops, and precision machining facilities. Its versatility makes it suitable for:
  • Producing smooth finishes on cylindrical parts
  • Reshaping metal components
  • Precision grinding of small and large workpieces
  • Industrial-scale production environments
Support & Services
Our comprehensive support package includes installation assistance, operator training, and maintenance services. Technical support is available for troubleshooting and optimizing machine performance.
Packaging & Shipping
The machine is securely packaged in wooden crates with proper cushioning to prevent transport damage. We provide tracked shipping via trusted freight carriers with delivery status updates.
Frequently Asked Questions
What is the brand and model of this machine?
Brand: HOTMAN, Model: FX27-60CNC
What certifications does this machine have?
CE certified for quality and safety standards
Where is this machine manufactured?
Manufactured in China
What are the payment terms?
Payment terms: T/T (Telegraphic Transfer)
