IG200 Antiwear CNC Internal Grinding Machine 1400RPM , Multipurpose Internal Grinder Device

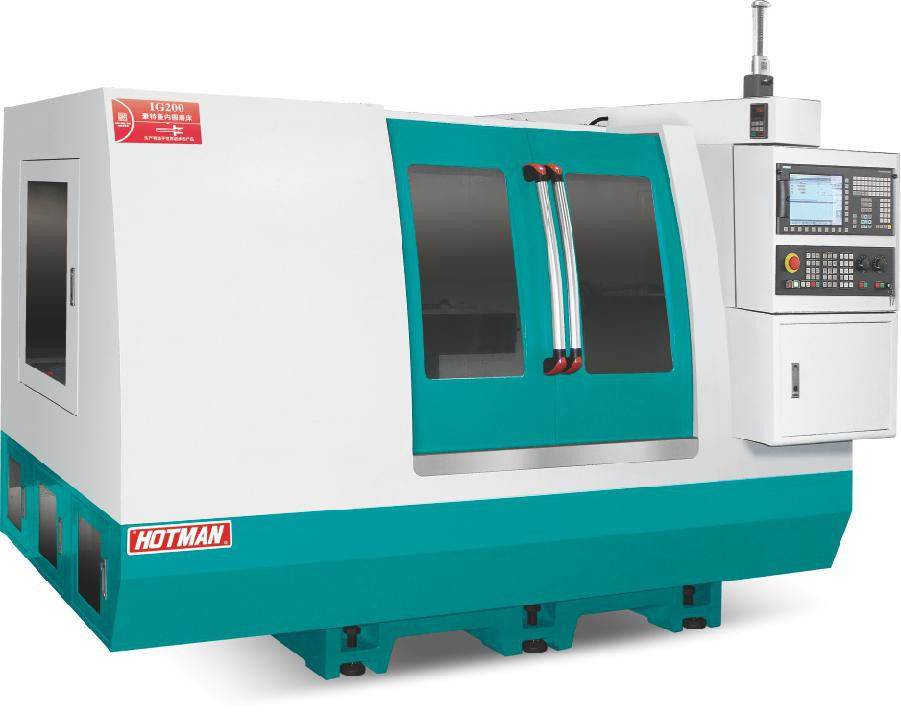

High precision CNC internal grinder-IG200

1.Suitable for large size/spare parts:

High rigid structure/graphics software

2.High rigidity:

High rigidity design of the bed and grinding wheel frame, workpiece head frame, feed mechanism, etc., for large size, more allowance, high hardness products to provide the process support.

3.High efficiency:

Different grinding spindles can be selected to adapt to the processing of products with different apertures. Besides diamond pen, roller dressing is also available for dressing. Ceramic CBN grinding wheel can be used for efficient grinding, and Mabos inner diameter measuring instrument can be used for online inner diameter measurement.

4.High stability:

The key parts of the machine tool are selected from international top brands to ensure the reliability and precision stability of the machine tool in the life cycle.

5.High convenience:

The graphical software design allows the operator to input parameters through a user-friendly interface to quickly generate related procedures for workpiece grinding, grinding wheel dressing, online measurement, etc.

6.High security:

Fully closed machine guard and advanced toughened glass observation window, emergency stop, one key back, safety door interlock design for operators to provide security.

Inside diameter grinding range  : Ø6~200mm

Grinding maximum hole depth: 170mm

Maximum stroke of table :500mm

Spindle speed of grinding wheel: 0~32000rpm

Minimum X/Z axis feed resolution : 0. 001mm
