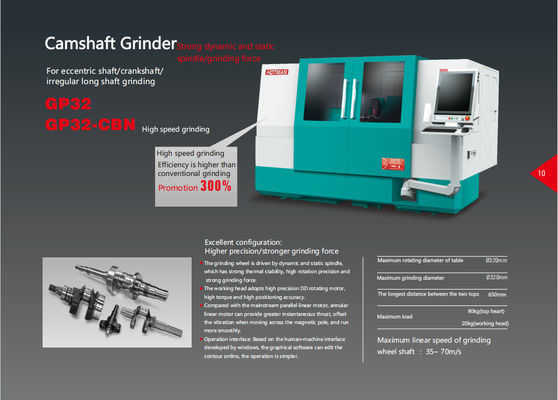

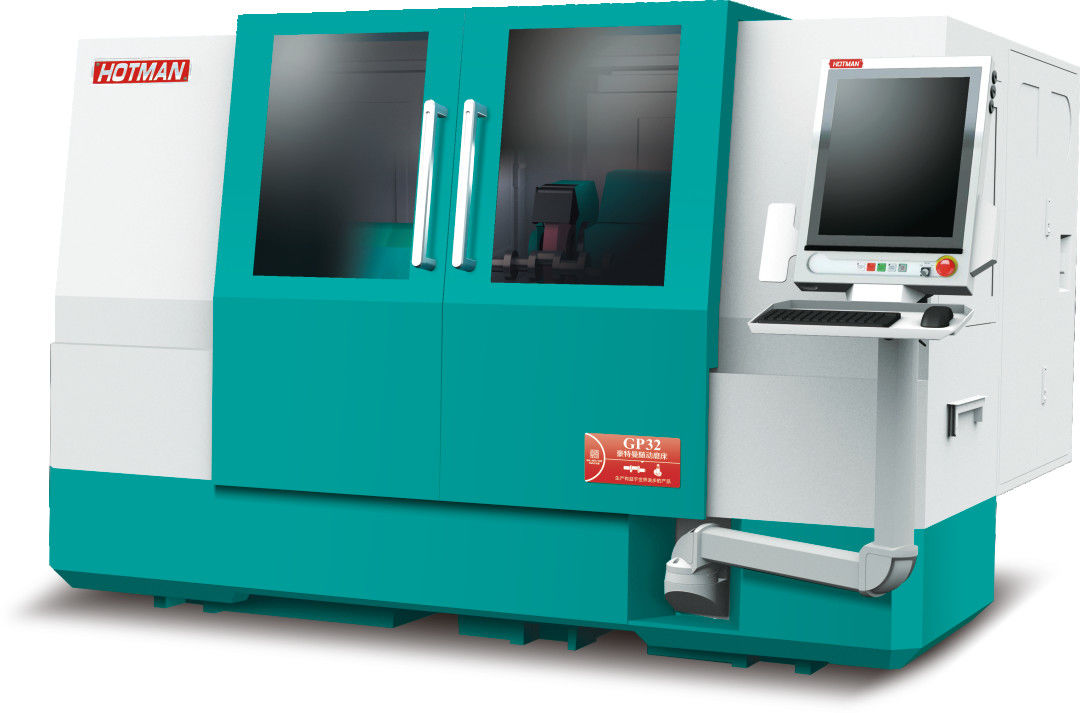

CNC Camshaft Grinding Machine GP32-CBN with 400mm Wheel Diameter

Large Image : CNC Camshaft Grinding Machine GP32-CBN with 400mm Wheel Diameter

Product Details:

Place of Origin:	China
Brand Name:	HOTMAN
Certification:	CE
Model Number:	GP32-CBN

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD1-600000/SET
Packaging Details:	WOODBOX
Delivery Time:	70DAYS
Payment Terms:	T/T,
Supply Ability:	10/SET/MONTH

Contact Now

Detailed Product Description

Grinding Wheel Diameter:	400mm	Grinding Length:	550mm
Grinding Wheel Motor Brand:	Siemens	Grinding Wheel Motor Insulation Grade:	F
Type:	Camshaft Grinding Machine	Grinding Wheel Motor Current:	13A
Grinding Wheel Motor Frequency:	50Hz	Grinding Wheel Motor Model:	1LE1001-1CB23-4AB4
Grinding Wheel Motor Power:	7.5kw	Grinding Wheel Motor Protection Level:	IP54
Grinding Wheel Motor Rotating Direction:	CW/CCW	Grinding Wheel Motor Speed:	1420rpm
Grinding Wheel Motor Voltage:	380V	Grinding Wheel Speed:	1400rpm
Grinding Wheel Width:	50mm
Highlight:	Motocycle Camshaft Grinding Machine , Pump Camshaft Grinding Machine

CNC Cam Grinder, GP32-CBN Camshaft Grinding Machine for Hard Alloy Diesel Engine, Motorcycle, Pump Camshaft

Key Features

Ultra-rigid bed structure for superior stability
Built-in Renishaw circular grating for ultra-high precision
Swiss design high-precision dynamic and static grinding wheel spindle
X-axis linear guide with self-circulating roller structure
Japan C2 precision ball screw drive table
Unique cylindrical linear motor for grinding wheel head (X-axis)
Heidenhain 50 nm grating scale feedback
Fixed/rotary dual-purpose precision workpiece head frame with air flotation
High rigidity air float tail seat
Flexible configuration options available

Technical Specifications

Machine Dimensions & Capacity

Center height	210mm
Maximum diameter of rotation	Φ400mm
Maximum grinding diameter	Φ550mm
Length of grinding between two tops	550mm
Maximum bearing between two tops	60kg

Grinding Wheel Specifications

Standard Grinding wheel size (φ×W×B)	Φ450×20-50×127mm
Special Grinding Wheel Size (φ×W×B)	Φ510×15-50×203mm
Grinding wheel spindle motor power	3.75KW/5.5KW
Maximum linear speed of grinding wheel	45m/s

Core Components

The body and components are cast by Milhanna high grade cast iron FC30, which undergoes artificial normalization heat treatment and natural aging. Components are processed by world-class equipment including YASDA, MITSUI SEIKI, TOSHIBA, and ELB with precision up to micron level.

Equipped with Siemens 828D CNC automatic grinding system with secondary development for user-friendly operation. Optional equipment includes inner hole grinding device, automatic end measuring device, and automatic outside diameter measuring device.

The grinding feed system features hand-crafted precision V and flat tracks with automatic lubrication system and C3 level precision grinding ball screw for smooth movement and excellent repeated positioning accuracy.

Technical Attributes

Grinding Wheel Diameter	400mm
Grinding length	550mm
Grinding Wheel Motor Brand	Siemens
Grinding Wheel Motor Power	7.5kw
Grinding Wheel Motor Voltage	380V
Grinding Wheel Speed	1400rpm
Grinding Wheel Width	50mm

Additional Specifications

Footprint size	3800×3200mm×2195
Height	2170mm
Net weight	5440kg
Standard machine noise	＜75dB(A)
Ambient temperature range	0-40℃
Ambient humidity	≤75％

Tag:

Contact Person: Daniel

Tel: 13790591015
