| Type: | Cylindrical Grinder Machine | Grinding Wheel Diameter: | 270 Mm |
|---|---|---|---|
| Max Grinding Length: | 600 Mm | Max Grinding Diameter: | 200 Mm |
| Grinding Wheel Motor Power: | 1.5 KW | Control System: | Siemens |
| Grinding Wheel Motor Voltage: | 220 V/380 V | Grinding Wheel Speed: | 3000 Rpm |
| Power: | 2.2 KW | Table Motor Power: | 0.75 KW |
| Table Motor Voltage: | 380 V | Table Speed: | 1-20 M/min |
| Voltage: | 380 V | Dimensions: | 2800 X 2000 X 2000 Mm |
| Weight: | 4000 Kg | ||
| Highlight: | Human Dialogue Cylindrical Grinder Machine |
||
Cylindrical Grinder with Human Dialogue Easy Programming CNC Controller, Strong Grinding Force

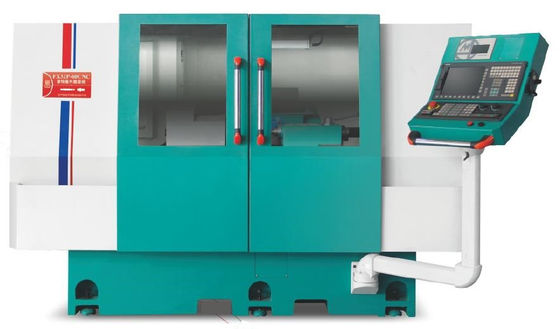

FX27-60CNC
Technical specification:
| Project | Unit | Model:FX32P-60CNC | |
|
Processing capacity
|
Maximum rotating diameter of table | mm | 320 |
|
Maximum distance between two thimbles |
mm | 600 | |
| Maximum grinding diameter | mm | 320 | |
| Maximum load between two parietal hearts | Kg(b) | 60(top work)/20 (working head only) | |
| Grinding wheel size (diameter × width × aperture) | mm | 455×38(32-50)×127 | |
| Grinding wheel speed | rpm | 1650 | |
| Maximum linear speed of grinding wheel | m/s | 40(high speed grinding wheel up to 65) | |
| Grinding wheel dressing | mm | Automatic type | |
|
Grinding wheel head |
Feed Angle | Deg | 90 |
| Feed stroke | mm | 250 | |
| X axis fast moving speed | m/min | 6 | |
| Minimum X-axis feed | mm | 0.001 | |
|
Head frame |
Spindle speed | rpm | 50-500 |
| Spindle form | Simultaneous or centering | ||
| Thimble specification | MT-4 | ||
|
Tail seat |
Automatic telescopic distance | mm | 40 |
| Thimble specification | MT-4 | ||
|
worktable |
Z axis fast moving speed | m/min | 8 |
| Minimum z-axis feed | mm | 0.001 | |
| Maximum travel | mm | 550 | |
| Angle of rotation | Deg | + 6/-9 | |
|
Motor |
Grinding wheel spindle motor | KW | 3.75/5.5 |
| X-axis feed motor (servo) | KW | 2.2 | |
| Z-axis feed motor (servo) | KW | 2.2 | |
| Head frame spindle motor | KW | 0.75 | |
| Cooling pump motor | KW | 0.75 | |
| Lubricating oil motor | KW | 0.25*2 | |
| Tail stock oil pump motor | KW | 0.75 | |
|
Other |
Net machine weight | Kg | 3300 |
| Gross machine weight | Kg | 3500 | |
| Package size (length * width * height) | mm | 2800*2000*2000 |
|
Device description:
1. Cylindrical Grinder Machine body and components are cast by Milhanna high grade cast iron FC30, which is artificially normalized heat treatment and then treated by natural aging. Components are processed by YASDA, MITSUI SEIKI, TOSHIBA, ELB and other world-class equipment once clamping processing. Precision size can be up to micron level.
2. Cylindrical Grinder Machine guide rails and precision ball screws are continuously lubricated by automatic lubrication system to ensure longer service life and accuracy. The cooling system is separated from the body to eliminate vibration and favorable heat dissipation.
3.The system and servo driver control precision is high, 80 bit floating-point number of nanometer calculation precision, eliminate calculation error
4. The grinding feed system is composed of a V and a flat track with precise hand cutting, automatic lubrication system, precision ball screw, high precision and high power servo motor. It has the characteristics of smooth movement, excellent repeated positioning accuracy and long service life of the track.
5. The grinding wheel main shaft is of high precision dynamic and static pressure introduced by Taiwan, sleeve structure, easy maintenance, free of metal-to-metal contact, and nearly permanent service life. The grinding wheel spindle has the characteristics of high rigidity and high precision. For special workpiece grinding, the grinding wheel speed can be adjusted to increase the linear speed.
6. The tail seat of cylindrical grinder machine is designed to be both rigid and robust. A hardened alloy steel sliding cylinder encrusted in the cast iron body is designed to carry the MT4 top core. The jacking force of the sliding cylinder can be easily changed by adjustment knobs at the rear. Special accessories oil pressure tail seat with a pedal to facilitate unloading work parts.
7.After the secondary development of man-machine interface, with Siemens high performance servo motor, so that the equipment CNC system and drive system have better compatibility, at the same time with automatic sand repair and automatic compensation functions, to ensure the stability and precision of feed and grinding.
Peculiarity:

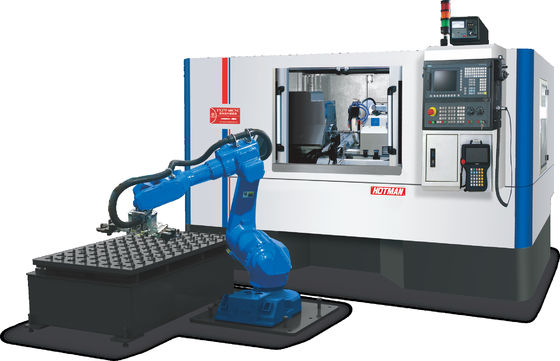

FX27P-60CNC high precision straight into the cylindrical grinding machine (full cover, single-machine manipulator automatic loading and unloading)
1. Bed rotation diameter: Φ270mm, distance between two top centers: 600mm.
2. Grinding wheel speed: 1650rpm, grinding wheel size (diameter × width × aperture) : Φ405×32×Φ127mm
3. Configure the active measuring device to realize the full closed-loop control of grinding processing.
