High Precision Centerless Grinding Machine, Centerless Grinder For Thinner Workpieces, Thinner Parts

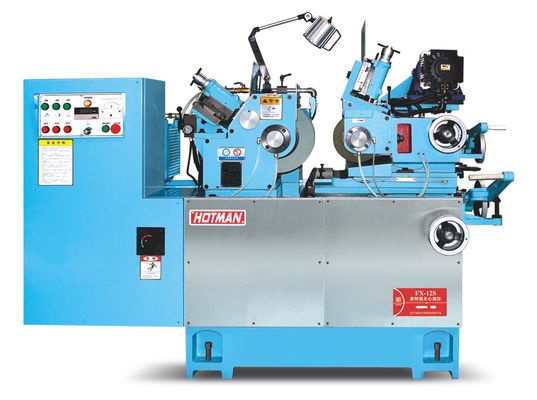

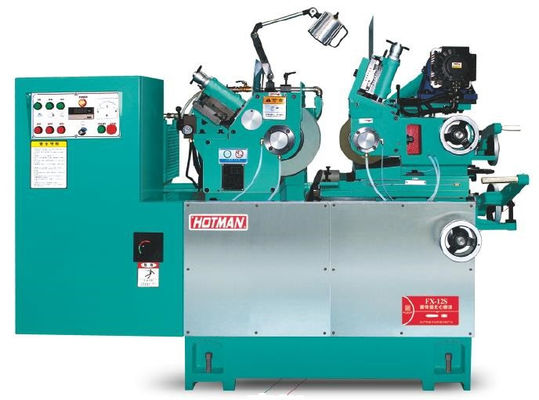

Centerless Grinding Machine FX-12S of The best choice for Thinner Parts/Workpieces

1.The best choice for small parts grinding

2.Best cost performance:

●Small footprint, low operating cost

●High rigid structure, can obtain high roundness and finish

●Precise manual spatula ensures long-term precision and stability of processing

3. Accuracy

Device description:

1. The body and components are cast by Milhanna high grade cast iron FC30. Components are processed by YASDA, MITSUI SEIKI, TOSHIBA, ELB and other world-class equipment once clamping processing. Precision size can be up to micron level, to ensure high precision equipment basic components.

2. Machine guide rails and precision ball screws are continuously lubricated by automatic lubrication system to ensure longer service life and accuracy. The cooling system is separated from the body to eliminate vibration and favorable heat dissipation.

3.Spindle automatic lubricating circulating oil (senior spindle oil 10#) and oil pressure dressing device is the same oil pump, external oil tank, easy to clean and change oil, spindle circulating oil through the double circuit device filter and equipped with pressure controller, to ensure the life of the spindle.

4. The driving Motor of the spindle of the adjusting wheel adopts YAS KAWA Servo Motor of Taiwan, and the FX-12S speed controls 0~320rpm to adjust the optimal linear speed. When the outside diameter of the adjusting wheel changes, the linear speed can still maintain the same, which ensures the precision and finish of the machining workpiece and grinds out the best product.

5. The standard configuration of the grinding wheel spindle is rear four and rear two bearing structure. High precision dynamic and static pressure spindle can also be selected, which has the characteristics of high rotation precision, high dynamic stiffness, good vibration resistance, high grinding efficiency and good grinding surface quality.

6. The tail seat is designed to be both rigid and robust. A hardened alloy steel sliding cylinder encrusted in the cast iron body is designed to carry the MT4 top core. The jacking force of the sliding cylinder can be easily changed by adjustment knobs at the rear. Special accessories oil pressure tail seat with a pedal to facilitate unloading work parts.

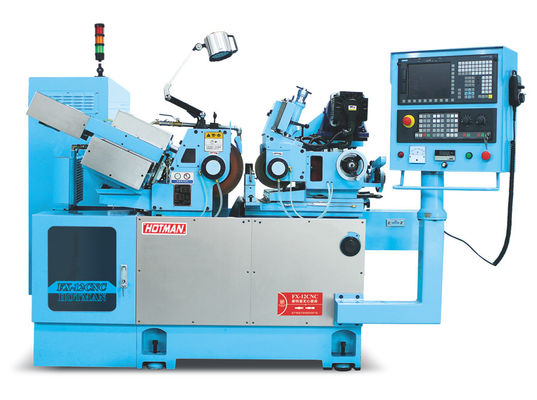

7.Siemens numerical control system as the standard configuration, after secondary development, all Chinese operation interface, easy to use. Equipped with Siemens high performance servo motor, the equipment CNC system and drive system have better compatibility, at the same time with automatic sand repair and automatic compensation function, to ensure the stability and precision of feed and grinding.

Technical specification:
