4500rpm Grinding Wheel CNC Centerless Grinder For Multipurpose

Large Image : 4500rpm Grinding Wheel CNC Centerless Grinder For Multipurpose

Product Details:

Place of Origin:	China
Brand Name:	HOTMAN
Certification:	CE
Model Number:	FX-20CNC

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	RMB1/SET
Packaging Details:	WOODEN BOOX
Delivery Time:	60DAYS
Payment Terms:	T/T
Supply Ability:	30

Contact Now

Detailed Product Description

Grinding Wheel Diameter:	200mm	Grinding Wheel Motor Power:	2.2KW
Grinding Wheel Speed:	4500rpm	Grinding Wheel Spindle Feed Rate:	0.1-3mm/min
Grinding Wheel Spindle Max. Load:	50Kg	Grinding Wheel Spindle Max. Speed:	6000rpm
Grinding Wheel Spindle Max. Thrust:	50N	Grinding Wheel Spindle Max. Torque:	30Nm
Grinding Wheel Spindle Motor Power:	1.5KW	Grinding Wheel Spindle Rapid Feed Rate:	10mm/min
Grinding Wheel Spindle Speed:	1400rpm	Grinding Wheel Spindle Travel:	50mm
Grinding Wheel Width:	20mm
Highlight:	Multipurpose CNC Centerless Grinder , CNC Centerless Grinder , Multipurpose Centerless Grinder

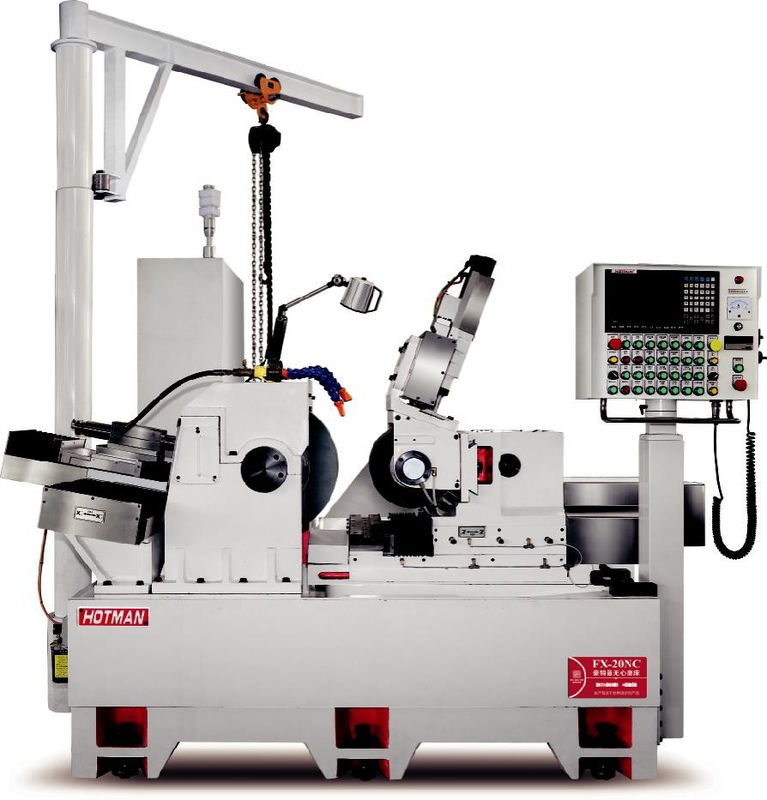

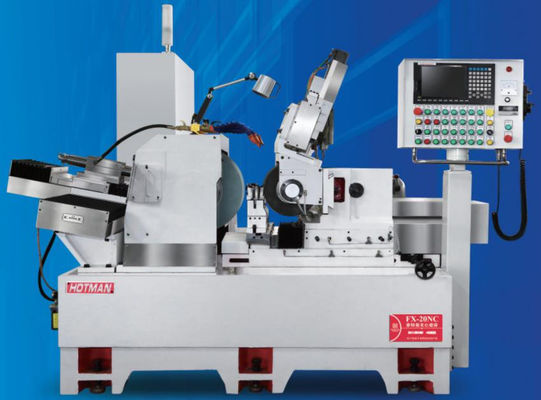

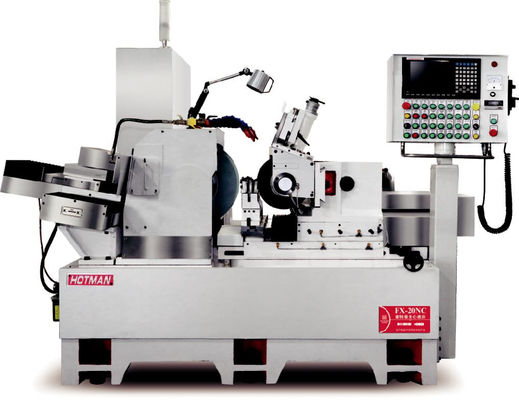

Centerless Grinding Machine FX-20CNC

Adjusting wheel spindle drive adopts servo motor, speed control 0-250rpm(digital control) can be arbitrarily set speed,

adjust to the best linear speed, when adjusting wheel diameter changes still can maintain the same linear speed, grinding

out the best product.

The servo motor is cleverly designed and installed on the adjusting wheel box and directly driven by the synchronous belt.

It can hit the tilt Angle with the adjusting wheel at the same time during grinding to ensure that the two belt wheels are

always parallel. It overcomes many adverse effects caused by inertia loss and chain Angle caused by chain multi-segment

transmission of old centerless grinder. And eliminates the need to constantly change chains and zipper springs.

The circuit of the whole equipment adopts Beijing Schneider circuit system, beautiful and durable, good operation. Increase

the height of the electric box, and equipped with air conditioning cooling device, convenient operation at the same time, more

conducive to the circuit system heat dissipation.

Hotman secondary development of numerical control system, Chinese man-machine dialogue interface, easy to learn;

With corresponding brand servo motor, one axis automatic feed, two axis CNC molding sand repair, good compatibility,

accurate feed.

1.Technical parameter:

Project	Unit	Model:FX-20CNC-3
Processing range of standard models (diameter)	mm	Φ 1-80
Grinding wheel size (OD * W * OD)	mm	Φ510(205-305)Φ254
Adjusting wheel size (OD * W * OD)	mm	Φ305(205-305)Φ127
Grinding wheel speed	RPM	1470
Linear speed of grinding wheel	m/s	45
Adjusting wheel speed	RPM	0-250
The grinding wheel drives the motor	KW	18.5
Adjusting wheel servo motor	KW	3
Feed servo motor	KW	3.9
Sand repair servo motor	KW	1.0*2
The hydraulic pump drives the motor	KW	0.75
The cooling pump drives the motor	KW	0.75
Adjusting wheel feed hand wheel	mm	3.5/ RPM 0.05/ scale
Adjusting wheel fine tuning hand wheel	mm	0.1/ to 0.001/ scale
Worktable feed hand wheel	mm	The servo feed minimum set quantity is 0.0005mm
Worktable micro adjustment hand wheel	mm	0.2/ RPM 0.001/scale
Trim feed hand wheel	mm	2mm/RPM 0.01mm/scale
Adjust wheel tilt Angle	Deg	+5°～-3°
Adjust the rotation Angle	Deg	±5°
Machine size (length * width * height)	mm	2800×2100×2000
Mechanical weight	KG	about 4500
