| Grinding Wheel Diameter: | 200mm | Grinding Wheel Motor Brand: | Siemens |
|---|---|---|---|
| Grinding Wheel Motor Cooling Method: | Air Cooling | Grinding Wheel Motor Current: | 13A |
| Grinding Wheel Motor Efficiency: | IE2 | Grinding Wheel Motor Frequency: | 50Hz |
| Grinding Wheel Motor Insulation Class: | F | Grinding Wheel Motor Model: | 1LE7 |
| Grinding Wheel Motor Power: | 7.5KW | Grinding Wheel Motor Protection Level: | IP54 |
| Grinding Wheel Motor Speed: | 1400rpm | Grinding Wheel Motor Voltage: | 380V |
| Grinding Wheel Motor Weight: | 7.5KG | Grinding Wheel Speed: | 6000rpm |

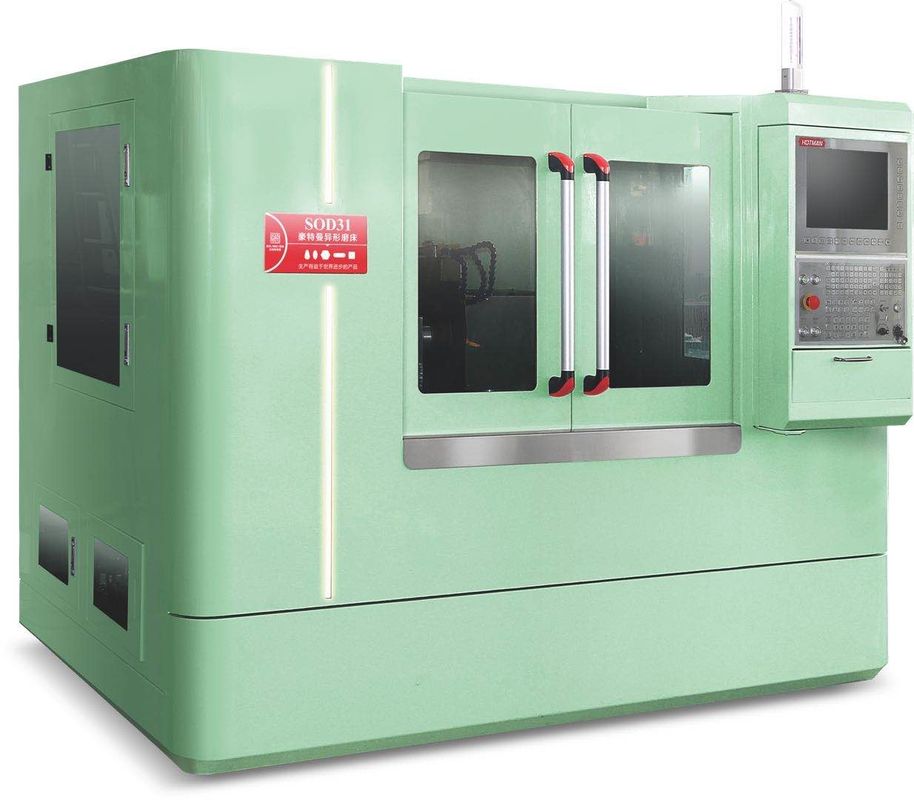

| Product Name: | CNC Grinder Machine | ||
| Highlight: | Industrial CNC Tool Grinder,CNC Tool Grinder Corrosion Resistance,Air Cooling CNC Industrial Machine |
||
Eccfhtric grinder
1. Adaptable to a variety of shapes/high efficiency:
Special-shaped punch/special-shaped mold/polygon/ellipse/CAM and other complex polyhedral coordinate grinding models.
Grinding efficiency: 7 minutes /1 piece
Yield: 95%
2.Expert in non-circular workpiece grinding:
Strong grinding force, high processing efficiency can greatly reduce the cost of irregular grinding. Excellent imported linear motor and torque motor applications, running more stable, accuracy can be maintained for a long time.
Customized control system makes the operation more simple and efficient in irregular grinding.
Through no backgap high speed and high precision feed due to the direct drive of the workpiece head frame.
| Machining diameter range | Ø5~Ø300mm | |
| Working length | 150mm | |
| Maximum stroke of X axis | 370mm | |
| Maximum z-axis stroke | 270mm | |
| Spindle speed of grinding wheel |
50~3000rpm |
|
| Minimum X/Z axis feed unit | 0.001mm | |
