| Grinding Wheel Diameter: | 200mm | Grinding Wheel Motor Power: | 2.2KW |
|---|---|---|---|
| Grinding Wheel Speed: | 4500rpm | Grinding Wheel Spindle Feed Rate: | 0.1-3mm/min |
| Grinding Wheel Spindle Max. Load: | 50Kg | Grinding Wheel Spindle Max. Speed: | 6000rpm |
| Grinding Wheel Spindle Max. Thrust: | 50N | Grinding Wheel Spindle Max. Torque: | 30Nm |
| Grinding Wheel Spindle Motor Power: | 1.5KW | Grinding Wheel Spindle Rapid Feed Rate: | 10mm/min |
| Grinding Wheel Spindle Speed: | 1400rpm | Grinding Wheel Spindle Taper: | Morse 5 |
| Grinding Wheel Spindle Travel: | 50mm | Grinding Wheel Width: | 20mm |
| Highlight: | Stable Centerless Grinding Equipment,Centerless Grinding Equipment CNC,Multipurpose CNC Cutter Grinder |
||

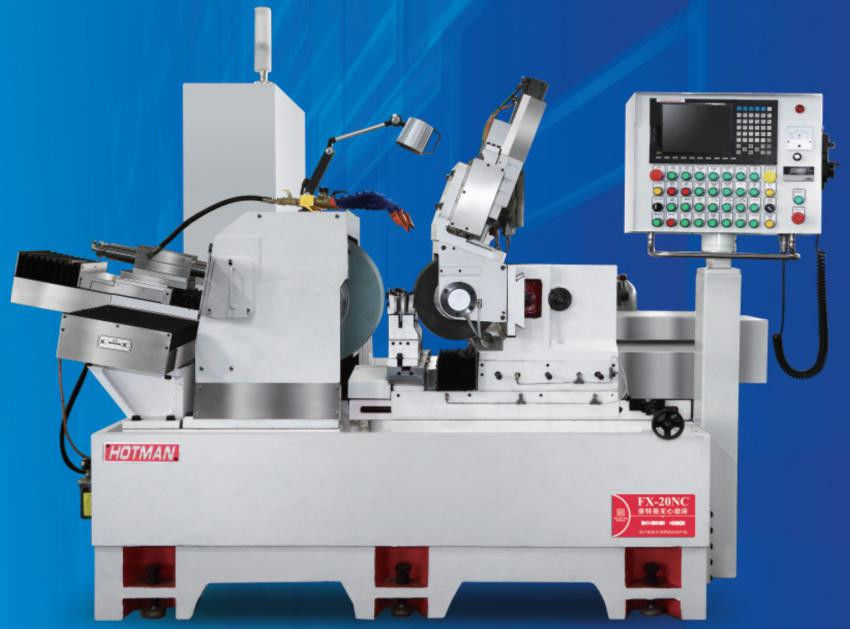

Centerless Grinding Machine FX-20CNC
1.Technical parameter:
| Project | Unit | Model:FX-20CNC-3 |
|
Processing range of standard models (diameter) |
mm | Φ 1-80 |
|
Grinding wheel size (OD * W * OD) |
mm | Φ510*(205-305)*Φ254 |
|
Adjusting wheel size (OD * W * OD) |
mm | Φ305*(205-305)*Φ127 |
| Grinding wheel speed | RPM | 1470 |
|
Linear speed of grinding wheel |
m/s | 45 |
| Adjusting wheel speed | RPM | 0-250 |
|
The grinding wheel drives the motor |
KW | 18.5 |
|
Adjusting wheel servo motor |
KW | 3 |
| Feed servo motor | KW | 3.9 |
|
Sand repair servo motor |
KW | 1.0*2 |
|
The hydraulic pump drives the motor |
KW | 0.75 |
|
The cooling pump drives the motor |
KW | 0.75 |
|
Adjusting wheel feed hand wheel |
mm | 3.5/ RPM 0.05/ scale |
|
Adjusting wheel fine tuning hand wheel |
mm | 0.1/ to 0.001/ scale |
|
Worktable feed hand wheel |
mm | The servo feed minimum set quantity is 0.0005mm |
|
Worktable micro adjustment hand wheel |
mm | 0.2/ RPM 0.001/scale |
| Trim feed hand wheel | mm | 2mm/RPM 0.01mm/scale |
| Adjust wheel tilt Angle | Deg | +5°～-3° |
|
Adjust the rotation Angle |
Deg | ±5° |
|
Machine size (length * width * height) |
mm | 2800×2100×2000 |
| Mechanical weight | KG | about 4500 |
