| Product Name: | Cylindrical Grinder Machine | Coolant Pump Motor Power: | 0.09kw |
|---|---|---|---|
| Grinding Wheel Diameter: | 200-400mm | Grinding Wheel Motor Power: | 3kw |
| Grinding Wheel Speed: | 1400r/min | Gross Weight: | 1800kg |
| Max. Grinding Diameter: | 200mm | Max. Grinding Length: | 1000mm |
| Max. Load Of Table: | 200kg | Net Weight: | 1600kg |
| Overall Dimension: | 1700x1400x1600mm | Power Source: | Electric |
| Table Speed: | 0.1-5m/min | Table Swivel Angle: | ±5° |
| Type: | Cylindrical Grinder Machine | ||
| Highlight: | 1400r/min Heavy Duty Cylindrical Grinding Machine,Heavy Duty Cylindrical Grinding Machine Durable,Electric Universal Cylindrical Grinder |
||

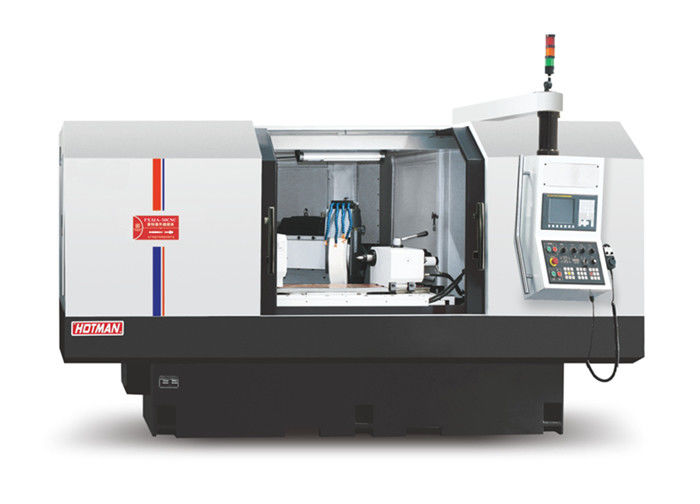

High Precision CNC Cylindrical Grinder FX32A-35CNC
1.Extended grinding function The perpendicularity of oblique cut grinding is less than:0.005mm
Automatic outside diameter measuring device Automatic end detection device
2.Oblique cut grinding can be used for diameter/shoulder/cone and chamfer grinding.
3.The grinding wheel spindle has the characteristics of high rigidity, high precision, high life, low vibration and low friction.
4.The spindle has the function of centering and simultaneous movement, and the user can quickly change between the core processing and chuck clamping processing.
5.It has extremely high repetitive positioning accuracy, long track life, high rigid strength and smooth reciprocating motion characteristics.
6.It can be equipped with end face measurement, outer diameter/thickness measurement, grinding wheel empty range anti-collision and on-line dynamic balancing device.
