Product Details:
Payment & Shipping Terms:
|
| Coolant Tank Capacity: | 100L | Grinding Wheel Diameter: | 200mm |
|---|---|---|---|
| Grinding Wheel Motor Power: | 2.2KW | Grinding Wheel Speed: | 1450rpm |
| Max. Grinding Diameter: | 200mm | Max. Grinding Length: | 1000mm |
| Overall Dimensions: | 1800×1400×1400mm | Product Name: | Cylindrical Grinder Machine |
| Table Speed: | 2-20m/min | Table Swivel Angle: | ±5° |
| Tailstock Taper: | Morse No.3 | Tailstock Travel: | 150mm |
| Weight: | 1800Kg | Workhead Motor Power: | 0.75KW |
| Workhead Speed Range: | 40-400rpm | ||
| Highlight: | 2m/Min CNC Universal Grinder,20m/Min CNC Universal Grinder,Durable Vertical Cylindrical Grinding Machine |
||

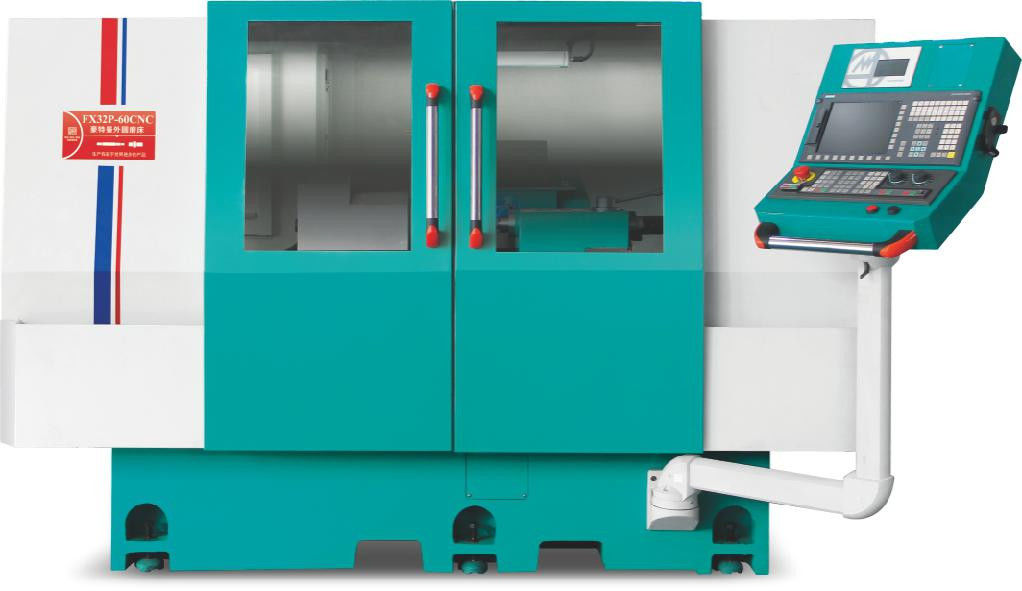

High Precision CNC Cylindrical Grinding Machine FX32A-75CNC
1. CNC oblique advance type
2.Oblique cutting greatly optimizes the grinding process
3.Bed and table forming in one
(1)The bed is made of Meehanna cast iron. After braising, the material is stable and rigid.
(2)The bed provides excellent cushioning and shock absorption, ensuring unmatched surface quality for grinding parts.
(3)The bed has rapid cooling and drainage characteristics, which can avoid thermal deformation and affect the accuracy.
4. FX32A-75CNC:
| Maximum rotating diameter of table | 320mm |
| The longest distance between the two tops | 800mm |
| Maximum grinding diameter | Ø300mm |
| Grinding wheel speed | 1522rpm |
