FX-01/01SP Small CNC Internal Grinder Machine Corrosion Resistance Durable

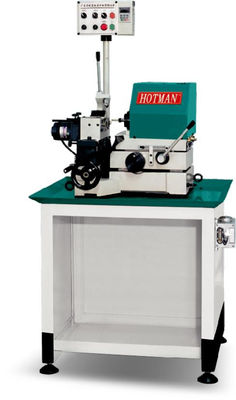

Large Image : FX-01/01SP Small CNC Internal Grinder Machine Corrosion Resistance Durable

Product Details:

Place of Origin:	China
Brand Name:	HOTMAN
Certification:	CE
Model Number:	FX-01/01SP

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	RMB1/SET
Packaging Details:	WOODEN BOOX
Delivery Time:	60DAYS
Payment Terms:	T/T
Supply Ability:	30

Contact Now

Detailed Product Description

Control System:	PLC	Coolant Tank Capacity:	200L
Grinding Wheel Diameter:	200mm	Grinding Wheel Motor Power:	7.5kw
Grinding Wheel Speed:	3000rpm	Max. Grinding Depth:	200mm
Max. Workpiece Length:	500mm	Max. Workpiece Weight:	200kg
Net Weight:	1500kg	Overall Dimension:	1400x1400x1700mm
Power Supply:	380V/50Hz	Product Name:	Internal Grinder Machine
Table Motor Power:	1.5kw	Table Speed:	0.1-3m/min
Highlight:	Small Internal Grinder Machine , Internal Grinder Machine Corrosion Resistance , Durable Small CNC Grinder

Standard accessories		Special accessories
1.	Ø3 Elastic Collet clip x 1 each	Center frame for holding material
2.	Ø6 Elastic Collet clip x 1 each	(Note: The center frame can be clamped)
3.	Nuts (M14 x P0.75) x 1 each	Workpiece maximum (400mm)
4.	Toolbox and accessories x 1 set	±45° rotating disc
		Cooling plant
		4.Optical ruler
		5.Quartz Working Light 1 set

Machine specification:

Clamping workpiece diameter		Ø1.0-Ø25mm	Spindle speed		0~55000rpm
Maximum clamping length		120mm		Working head	25W
Maximum stroke	Before and after	40mm	motor	Main shaft	1HP
Maximum stroke	Left and right	65mm	motor	Before and after	-
Forward and backward feed indexing		0.005mm		Left and right
Working head speed		0~380rpm	Mechanical size (L×W×H)		900×700
Working head rotation Angle		±5°	Mechanical size (L×W×H)		×1400mm

Feed mode	Before and after	manual	Manual mechanical weight (approx.)		180kgs

	Left and right	manual	Processing range (inner hole)		1~20mm

Applicable object of this machine:

● Guide sleeve

● Needle stick for industrial use

● Needle sticks for family use

● Elastic collet

● Ceramic nozzle hole

● Ceramic guidesleeve

● Small internal hole grinding of related components

FX-01/01SP Small CNC Internal Grinder Machine Corrosion Resistance Durable 0

1.Diamond grinding rod Excellent cutting force performance, can be designed according to different grinding requirements.

2.Rotatable roller head, rotation Angle ±45°

3.Grinding form

FX-01/01SP Small CNC Internal Grinder Machine Corrosion Resistance Durable 1
