PLC Automatic Cylindrical Grinder Machine 200mm Max Diameter

Large Image : PLC Automatic Cylindrical Grinder Machine 200mm Max Diameter

Product Details:

Place of Origin:	China
Brand Name:	HOTMAN
Certification:	CE
Model Number:	FX27-60CNC

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	RMB1/SET
Packaging Details:	WOODEN BOOX
Delivery Time:	60DAYS
Payment Terms:	T/T
Supply Ability:	30

Contact Now

Detailed Product Description

Control System:	PLC	Dimensions:	1000 X 1000 X 1000 Mm
Grinding Wheel Diameter:	200 Mm	Grinding Wheel Motor Power:	1.5 KW
Grinding Wheel Motor Voltage:	220 V/380 V	Grinding Wheel Speed:	3000 Rpm
Max Grinding Diameter:	200 Mm	Max Grinding Length:	1000 Mm
Power:	2.2 KW	Table Motor Power:	0.75 KW
Table Motor Voltage:	380 V	Table Speed:	1-20 M/min
Type:	Cylindrical Grinder Machine	Voltage:	380 V
Weight:	500 Kg
Highlight:	Durable Cylindrical Grinder Machine , Cylindrical Grinder Machine Automatic , Multi Function Cylinder Grinding Machine

Hotman Durable High Precision Multifunctional Automatic Cylindrical Grinder Machine

Key Specifications

Attribute	Value
Control System	PLC
Dimensions	1000 x 1000 x 1000 mm
Grinding Wheel Diameter	200 mm
Grinding Wheel Motor Power	1.5 kW
Grinding Wheel Motor Voltage	220 V/380 V
Grinding Wheel Speed	3000 rpm
Max Grinding Diameter	200 mm
Max Grinding Length	1000 mm
Power	2.2 kW
Weight	500 kg

Product Description

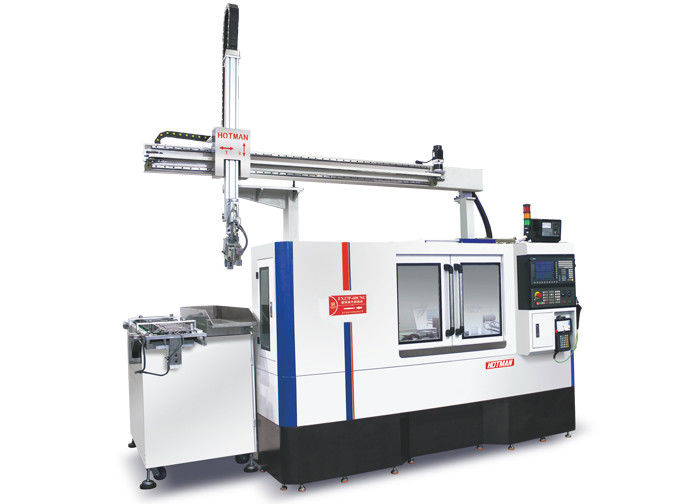

Single-machine manipulator automatic loading and unloading system for precision cylindrical grinding operations.

Device Features

Body and components cast from Milhanna high-grade FC30 cast iron with artificial normalized heat treatment and natural aging
Components processed by world-class equipment (YASDA, MITSUI SEIKI, TOSHIBA, ELB) with micron-level precision
Machine guide rails and precision ball screws with automatic lubrication system for extended service life
Siemens 828D CNC automatic grinding system with secondary development for user-friendly operation
Optional equipment includes inner hole grinding device, automatic measuring devices, and more
Precision grinding feed system with automatic lubrication and C3 level precision grinding ball screw
High precision dynamic and static pressure spindle options available (up to 3500 RPM and 60m/s)
Robust tail seat design with hardened alloy steel sliding cylinder and adjustable jacking force
Siemens numerical control system with Chinese operation interface and automatic compensation functions

Technical Specifications

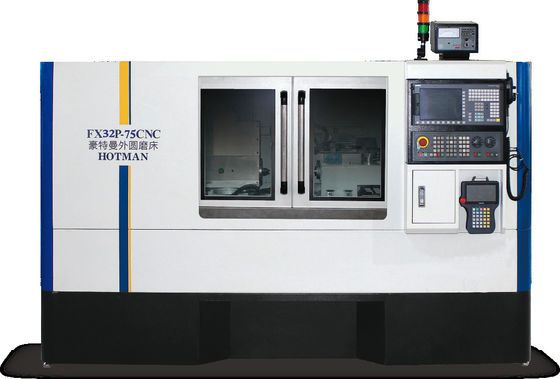

Project	Unit	Model: FX32P-60CNC
Maximum rotating diameter of table	mm	320
Maximum distance between two thimbles	mm	600
Maximum grinding diameter	mm	320
Grinding wheel size (diameter × width × aperture)	mm	455×38(32-50)×127
Grinding wheel speed	rpm	1650
Grinding wheel spindle motor	KW	3.75/5.5
Net machine weight	Kg	3300
Gross machine weight	Kg	3500
