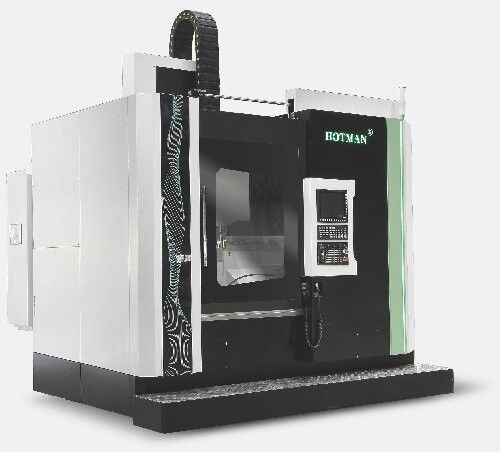

Vertical Grinding Machine 860mm Diameter 0.2um Surface Roughness

Large Image : Vertical Grinding Machine 860mm Diameter 0.2um Surface Roughness

Product Details:

Place of Origin:	China
Brand Name:	HOTMAN
Certification:	CE
Model Number:	Z860

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	RMB1/SET
Packaging Details:	WOODEN BOOX
Delivery Time:	60DAYS
Payment Terms:	T/T
Supply Ability:	30

Contact Now

Detailed Product Description

Accuracy:	High	Diameter:	200-400mm
Efficiency:	High	GrindingWheel:	Diamond/CBN
Material:	Metal	Name:	Vertical Grinding Machine
Noise:	Low	Power:	Electric
Size:	Customized	Thickness:	0.5-20mm
Type:	Grinding Machine	Voltage:	380V
Weight:	500-1000kg	Width:	50-100mm
Highlight:	380V Vertical Grinding Machine , Electric Vertical Grinding Machine , Multifunctional CNC Tool Grinder

Vertical Grinding Machine with Surface Roughness of 0.2um and Processing Capacity-Z860

Key Specifications

Attribute	Value
Accuracy	High
Diameter Range	200-400mm
Efficiency	High
Grinding Wheel	Diamond/CBN
Material Compatibility	Metal
Noise Level	Low
Power Source	Electric
Size Options	Customized
Thickness Range	0.5-20mm
Voltage	380V
Weight Range	500-1000kg
Width Range	50-100mm

Precision Engineering Features

Constructed with Milhanna high-grade cast iron FC30, undergoing artificial normalization heat treatment and natural aging for superior durability
Components processed by world-class equipment (YASDA, MITSUI SEIKI, TOSHIBA, ELB) with micron-level precision
Automatic lubrication system for guide rails and precision ball screws ensures extended service life and maintained accuracy
Separate cooling system minimizes vibration and optimizes heat dissipation
Siemens 828D CNC automatic grinding system with user-friendly interface and multiple optional equipment configurations
Precision V and flat track feed system with C3 level grinding ball screws for smooth movement and excellent repeatability
High-performance grinding wheel spindle options including dynamic/static pressure spindles with rotation precision up to 3500 RPM
Robust tail seat design with hardened alloy steel sliding cylinder and adjustable jacking force
Siemens CNC system with Chinese interface, high-performance servo motors, and automatic compensation functions

Standard Accessories

Item	Quantity
Special control system for Siemens grinding machines	1 Set
MPG electronic hand wheel	1 Set
Full cover protective sheet metal	1 Group
Table drive system	1 Set
Magnetic paper tape filter device	1 Piece
Grinding wheel spindle	1 Piece
Static pressure turntable	1 Group
Grating scale	1 Set
Diamond pen and fixing base	1 Set
Roller sand repair device	1 Group
Cooling water tank	1 Group
Operation manual	1 Set
Machine tool service tool (Toolbox)	1 Set
Machine tool horizontal foundation screws and foundation foot pads	1 Set
Grinding wheel	2 pieces

Technical Parameters

Category	Parameter	Value
Machining Accuracy	Roundness	0.0015mm
	Concentricity	0.0025mm
	Surface roughness	0.2um
Processing Capacity	Grinding maximum outside diameter	860mm
	Internal grinding diameter range	50-500mm
	Maximum grinding height	600mm
	Maximum load of table	800kg
Grinding Wheel Spindle	Grinding wheel speed	2000-8000rpm
	Grinding wheel diameter	40-305mm
	Spindle taper hole	HSK-A100
Work Table	Work table diameter	800mm
Work Table	Work table speed	5-200rpm
Route	X axis	300+1400mm
	Z axis	600mm
	Fast moving speed	24m/min
	Resolution	0.0001mm
	B axis(assorting)	Servo division minimum 0/22.5 degrees
ATC	Number of knife libraries stored	6
	Maximum diameter of grinding wheel	305mm
	Maximum length of grinding wheel	350mm
Wheel Dresser	Diamond pen	3 pieces
	Diamond wheel	2800rpm
	Diamond diameter	120mm
