Hydraulic CNC Universal Grinding Machine 2.2KW Multiscene FX32P-100CNC

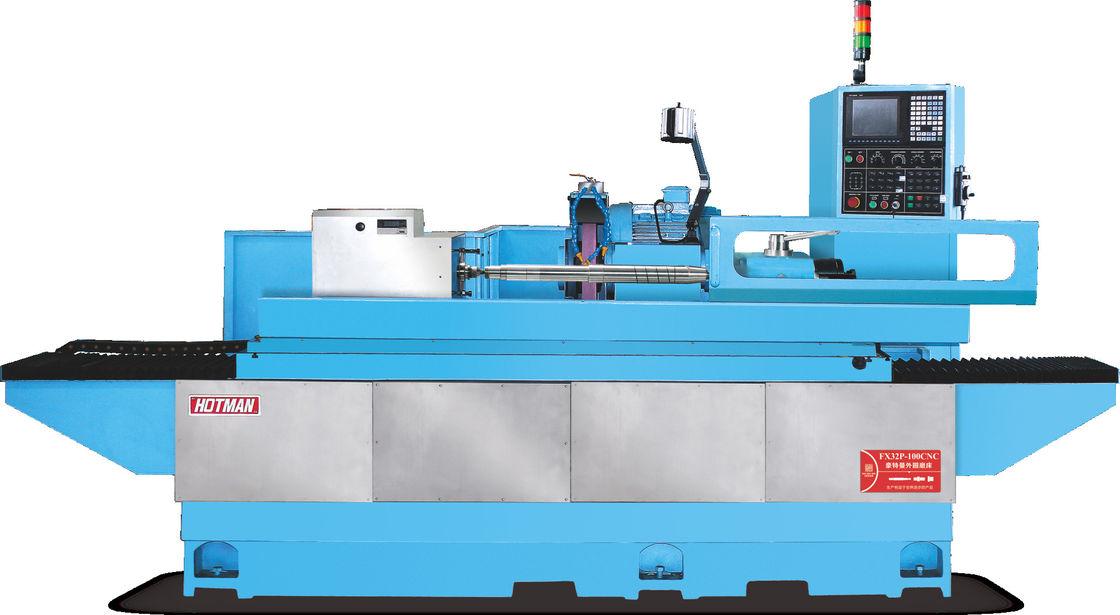

Large Image : Hydraulic CNC Universal Grinding Machine 2.2KW Multiscene FX32P-100CNC

Product Details:

Place of Origin:	China
Brand Name:	HOTMAN
Certification:	CE
Model Number:	FX32P-100CNC

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	RMB1/SET
Packaging Details:	WOODEN BOOX
Delivery Time:	60DAYS
Payment Terms:	T/T
Supply Ability:	30

Contact Now

Detailed Product Description

Grinding Accuracy:	0.002mm	Grinding Wheel Diameter:	200mm
Grinding Wheel Hole Diameter:	50mm	Grinding Wheel Motor Power:	2.2KW
Grinding Wheel Speed:	3000rpm	Grinding Wheel Width:	20-50mm
Max. Weight Of Workpiece:	200kg	Name:	Cylindrical Grinder Machine
Overall Dimension:	1800mm1400mm1700mm	Table Motor Power:	1.5KW
Table Size:	400mm*1000mm	Table Speed:	0.1-5m/min
Type:	Grinding Machine	Workpiece Diameter:	20-200mm
Workpiece Length:	200-1000mm
Highlight:	Hydraulic CNC Universal Grinding Machine , CNC Universal Grinding Machine 2.2KW , Multiscene Hydraulic Cylindrical Grinding Machine

High Precision CNC Cylindrical Machine FX32P-100CNC(half cover)

Technical specification:

	Project	Unit	Model:FX32P-100CNC
Processing capacity	Maximum rotating diameter of table	Mm	350
	Maximum distance between two thimbles	Mm	1000
	Maximum grinding diameter	Mm	320
	Maximum load between two parietal hearts	Kg	150(顶心工作)/40(只有工作头)
	Grinding wheel size (diameter × width × aperture)	Mm	510×50×127/610×100×127
	Grinding wheel speed	Rpm	1570/1742
	Maximum linear speed of grinding wheel	m/s	45
Grinding wheel head	Grinding wheel dressing	Mm	Automatic type
	Minimum X-axis feed	Mm	0.001
	Feed Angle	Deg	90
	Feed stroke	Mm	320
	X axis fast moving speed	m/min	6
Head frame	Spindle speed	Rpm	10-500
	Spindle form
	Thimble specification		MT-5
Tail seat	Automatic telescopic distance	Mm	40
	Thimble specification		MT-4
	Working mode		Manual/hydraulic
worktable	Z axis fast moving speed	m/min	8
	Minimum z-axis feed	Mm	0.001
	Maximum travel	Mm	1000
	Angle of rotation	Deg	+7/-7
Motor	Grinding wheel spindle motor	KW	7.5/11
	X-axis feed motor (servo)	KW	3.0
	Z-axis feed motor (servo)	KW	3.0
	Head frame spindle motor	KW	1.5
	Cooling pump motor	KW	0.75
	Lubricating oil motor	KW	(0.25)*2
	Tail stock oil pump motor	KW	0.75
Other	X/Z axis guide/lead screw lubricating oil		MOBIL#1409 orISO VG68
	Net machine weight	Kg	7500
	Gross machine weight	Kg	8500
	Package size (length * width * height)	Mm	480038003000
