Product Details:
Payment & Shipping Terms:
|
| Grinding Wheel Balance: | G2.5 | Grinding Wheel Diameter: | 200-400mm |
|---|---|---|---|
| Grinding Wheel Grit: | 80-120 | Grinding Wheel Hardness: | HV800-1000 |
| Grinding Wheel Hole Diameter: | 20-50mm | Grinding Wheel Material: | Aluminum Oxide |
| Grinding Wheel Speed: | 50-100m/s | Grinding Wheel Spindle Bearing: | NSK |
| Grinding Wheel Spindle Cooling: | Air Cooling | Grinding Wheel Spindle Lubrication: | Oil Lubrication |
| Grinding Wheel Spindle Power: | 2-4KW | Grinding Wheel Spindle Speed: | 3000-6000rpm |
| Grinding Wheel Spindle Taper: | BT30 | Grinding Wheel Width: | 20-50mm |
| Highlight: | Multiscene Centerless Grinding Machine,Centerless Grinding Machine Antiwear,Air Cooling Centerless Internal Grinding |
||

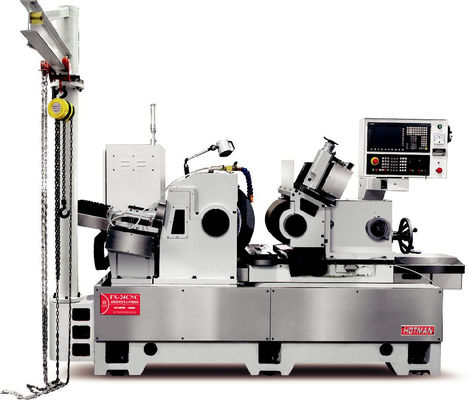

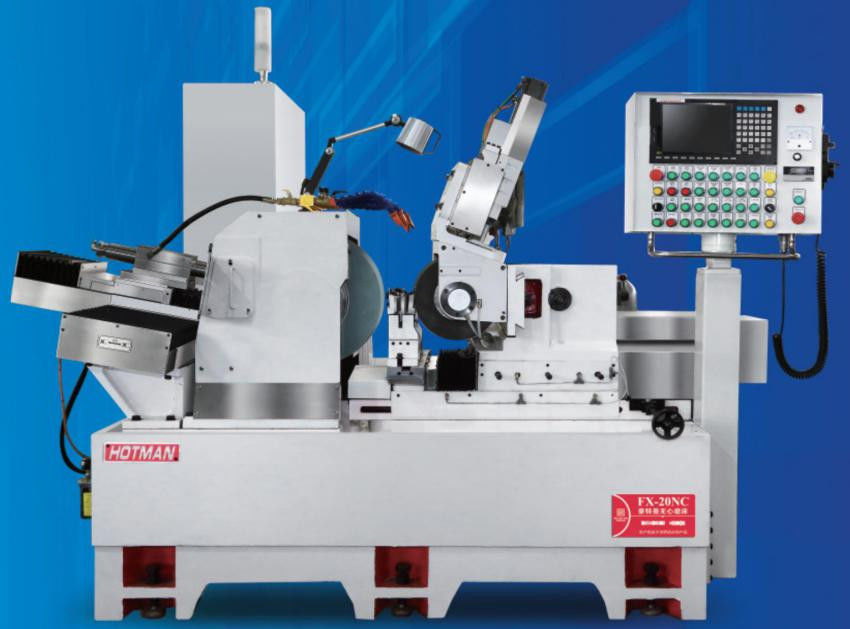

The High Precision CNC Centerless Grinding MachineFX-20CNC is a cutting-edge solution for precision grinding applications. It is designed and manufactured by HOTMAN, a renowned brand in the CNC industry. This machine offers exceptional performance, accuracy, and reliability, making it suitable for a wide range of grinding tasks.
Features:
Grinding Wheel Balance: The machine is equipped with a G2.5 grinding wheel balance system, ensuring stable and precise grinding operations.
Grinding Wheel Diameter: The machine supports grinding wheel diameters ranging from 200mm to 400mm, allowing for versatile grinding capabilities.
Grinding Wheel Material: The grinding wheel is made of high-quality aluminum oxide, providing durability and efficient grinding performance.
Grinding Wheel Speed: With a speed range of 50m/s to 100m/s, the machine offers flexible speed control for different grinding requirements.
Grinding Wheel Spindle: The machine features a high-precision NSK spindle bearing for smooth and reliable grinding operations.
Grinding Wheel Spindle Cooling: The spindle is equipped with an effective air cooling system, preventing overheating and ensuring optimal performance.
Grinding Wheel Spindle Lubrication: The spindle is lubricated with oil, enhancing its longevity and maintaining consistent performance.
Grinding Wheel Spindle Power: The machine is powered by a 2-4KW grinding wheel spindle, providing sufficient power for efficient grinding.
| Project | Unit | Model:FX-20CNC-3 |
|
Processing range of standard models (diameter) |
mm | Φ 1-80 |
|
Grinding wheel size (OD * W * OD) |
mm | Φ510*(205-305)*Φ254 |
|
Adjusting wheel size (OD * W * OD) |
mm | Φ305*(205-305)*Φ127 |
| Grinding wheel speed | RPM | 1470 |
|
Linear speed of grinding wheel |
m/s | 45 |
| Adjusting wheel speed | RPM | 0-250 |
|
The grinding wheel drives the motor |
KW | 18.5 |
|
Adjusting wheel servo motor |
KW | 3 |
| Feed servo motor | KW | 3.9 |
|
Sand repair servo motor |
KW | 1.0*2 |
|
The hydraulic pump drives the motor |
KW | 0.75 |
|
The cooling pump drives the motor |
KW | 0.75 |
|
Adjusting wheel feed hand wheel |
mm | 3.5/ RPM 0.05/ scale |
|
Adjusting wheel fine tuning hand wheel |
mm | 0.1/ to 0.001/ scale |
|
Worktable feed hand wheel |
mm | The servo feed minimum set weight is 0.0005mm |
|
|
mm | 0.2/ turn 0.001/ scale |
| Trim feed hand wheel | mm | 2mm/ turn 0.01mm/ scale |
| Adjust wheel tilt Angle | Deg | +5°～-3° |
|
Adjust the rotation Angle |
Deg | ±5° |
|
Machine size (length * width * height) |
mm | 2800×2100×2000 |
| Mechanical weight | KG | 4500 |
Q1: What is the processing range of the High Precision CNC Centerless Grinding MachineFX-20CNC?
A: The machine can handle cylindrical components with diameters ranging from 1mm to 80mm.
Q2: What is the speed range of the grinding wheel?
A: The grinding wheel speed can be adjusted from 50m/s to 100m/s, providing flexibility for different grinding tasks.
Q3: Does the machine have a cooling system for the grinding wheel spindle?
A: Yes, the machine is equipped with an efficient air cooling system to prevent overheating of the grinding wheel spindle.
Q4: What support and services are provided by HOTMAN?
A: HOTMAN offers comprehensive technical support, including installation guidance, machine training, and troubleshooting assistance. We are committed to ensuring customer satisfaction and providing prompt and efficient services.
