IG200 220V 380V CNC Internal Grinder , Practical External Internal Grinding Machine

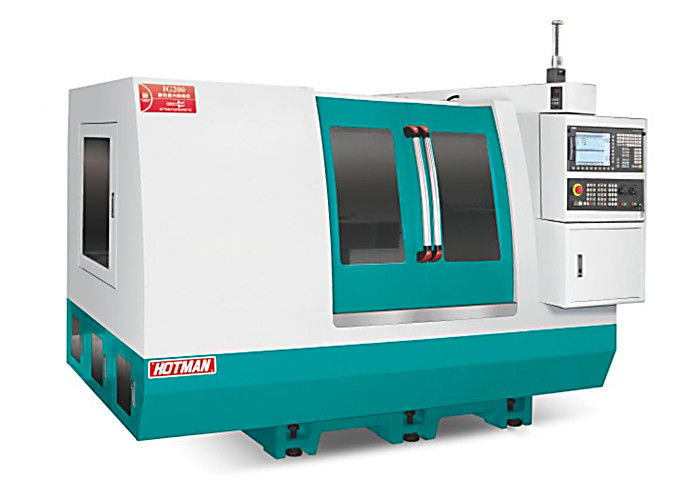

Large Image : IG200 220V 380V CNC Internal Grinder , Practical External Internal Grinding Machine

Product Details:

Place of Origin:	China
Brand Name:	HOTMAN
Certification:	CE
Model Number:	IG200

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	RMB100,000.00-400,000.00/SET
Packaging Details:	WOODEN BOOX
Delivery Time:	60DAYS
Payment Terms:	T/T, T/T
Supply Ability:	30

Contact Now

Detailed Product Description

Grinding Wheel Feeding Motor Power:	0.04KW	Grinding Wheel Feeding Motor Speed:	100-1000r/min
Grinding Wheel Feeding Motor Voltage:	220V/380V	Grinding Wheel Feeding Speed:	0.1-3mm/min
Grinding Wheel Motor Power:	0.75KW	Grinding Wheel Size:	150mm
Grinding Wheel Speed:	4500r/min	Name:	Internal Grinder Machine
Power:	2.2KW	Processing Range:	φ3-φ50mm
Size:	130013001700mm	Speed:	2800r/min
Type:	Grinding Machine	Voltage:	380V
Weight:	400KG
Highlight:	220V CNC Internal Grinder , 380V CNC Internal Grinder , Practical External Internal Grinding Machine

High precision CNC internal grinder IG-200

Strong grinding force, large margin workpiece efficient grinding;

Focus on high rigidity and high stability;

Pursue efficient grinding and can be equipped with Marposs inner diameter measuring device.

Project	Parameter
Processing capacity
Grinding aperture range	Φ6~φ200mm
Maximum grinding depth	170mm
Maximum outer contour diameter of grinding workpiece	220mm
Grinding diameter	400mm
Mounting chuck specifications	6 "hydraulic chuck/manual chuck
Angle of head box rotation	Two degrees before and 20 degrees after
Grinding wheel spindle parameters
Inner hole grinding spindle power	7.5KW
Linear speed of grinding wheel	20~30m/s
Head frame spindle parameters
Spindle speed	50-1500rpm
Spindle form	Sleeve structure bearing spindle
Cone-hole specification	MT-5
Spindle drive mode	Servomotor
X axis (workpiece spindle)
X-axis feed stroke	410mm
X axis fast moving speed	0.1~10mm/min
X-axis feed minimum resolution	0.001
X axis servo motor power	2.2 KW
Z-axis (workbench)
Z axis axis fast moving speed	0.1~10mm/min
Z-axis feed minimum resolution	0.001mm
Maximum travel of Z axis	410mm
Z-axis servo motor power	2.2KW
