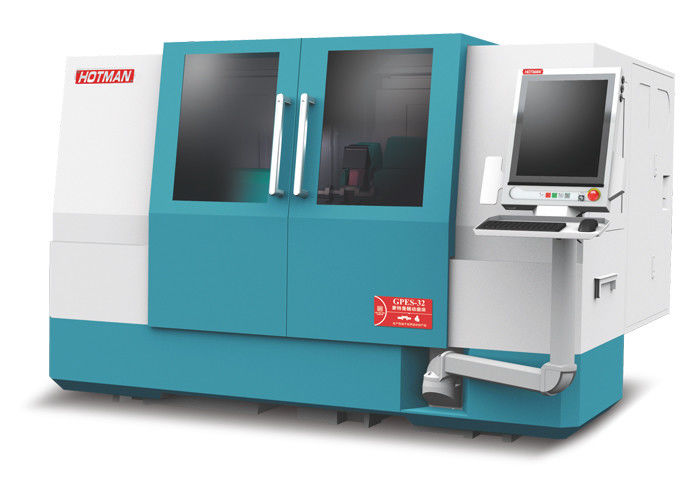

Siemens CNC Camshaft Grinding Machine GP32 7.5kw IP54

Large Image : Siemens CNC Camshaft Grinding Machine GP32 7.5kw IP54

Product Details:

Place of Origin:	China
Brand Name:	HOTMAN
Certification:	CE
Model Number:	GP32

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	RMB1-400/SET
Packaging Details:	WOODBOX
Delivery Time:	70DAYS
Payment Terms:	T/T,
Supply Ability:	10/SET/MONTH

Contact Now

Detailed Product Description

Grinding Wheel Diameter:	400mm	Grinding Wheel Motor Brand:	Siemens
Grinding Wheel Motor Cooling Method:	Air Cooling	Grinding Wheel Motor Current:	13A
Grinding Wheel Motor Frequency:	50Hz	Grinding Wheel Motor Insulation Grade:	F
Grinding Wheel Motor Model:	1LE1001-1CB23-4AB4	Grinding Wheel Motor Power:	7.5kw
Grinding Wheel Motor Protection Level:	IP54	Grinding Wheel Motor Rotating Direction:	CW/CCW
Grinding Wheel Motor Speed:	1420rpm	Grinding Wheel Motor Voltage:	380V
Grinding Wheel Speed:	1400rpm	Grinding Wheel Width:	50mm
Type:	Camshaft Grinding Machine
Highlight:	IP54 CNC Cam Grinder , 1420rpm CNC Cam Grinder , Stable Cam Shaft Grinding Machine

IP54 1420rpm CNC Cam Grinder, GP32 Stable Cam Shaft Grinding Machine

Key Features

Ultra-rigid bed structure for maximum stability
Built-in Renishaw circular grating with ultra-high precision
Swiss design high-precision dynamic and static grinding wheel spindle
X-axis linear guide with self-circulating roller structure
Japan C2 precision ball screw drive table
Unique cylindrical linear motor for grinding wheel head (X-axis)
Heidenhain 50 nm grating scale feedback
Fixed/rotary dual-purpose precision workpiece head frame with air flotation
High rigidity air float tail seat
Flexible options configuration for various applications

Technical Specifications

Grinding Wheel Diameter	400mm
Motor Brand	Siemens
Motor Power	7.5kw
Motor Speed	1420rpm
Protection Level	IP54
Type	Camshaft Grinding Machine

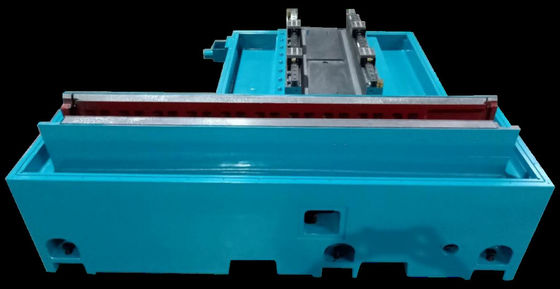

Machine Construction

The body and components are cast from Milhanna high-grade cast iron FC30, undergoing artificial normalized heat treatment and natural aging. Components are processed using world-class equipment from YASDA, MITSUI SEIKI, TOSHIBA, and ELB with single clamping processing, achieving micron-level precision for high-accuracy equipment components.

Precision Systems

Machine guide rails and precision ball screws are continuously lubricated by an automatic system to ensure long service life and accuracy. The cooling system is separated from the body to eliminate vibration and improve heat dissipation.

Control System

Equipped with Siemens 828D CNC automatic grinding system with secondary development, featuring user-friendly operation interface. Includes multiple optional equipment choices such as inner hole grinding device, automatic end measuring device, and automatic outside diameter measuring device.

Detailed Technical Parameters

Center height	210mm
Maximum grinding diameter	Φ400mm
Grinding length between centers	600mm
Grinding wheel spindle speed range	1650/1850/2100rpm
Workpiece head speed range	0-600rpm (stepless)
X-axis positioning accuracy	≤0.0016mm
Control system	Siemens 828D CNC
Machine dimensions	3800×3200×2195mm
Net weight	5440kg
