Product Details:
Payment & Shipping Terms:
|
| Dimensions: | 1000mm×1000mm×1500mm | Grinding Wheel: | φ200×25×φ32mm |
|---|---|---|---|
| Grinding Wheel Speed: | 3000r/min | Material: | Cast Iron |
| Max. Grinding Height: | 100mm | Max. Grinding Length: | 200mm |
| Max. Grinding Width: | 100mm | Name: | Vertical Grinding Machine |
| Power: | 7.5KW | Speed: | 1400r/min |
| Table Size: | 400mm×180mm | Table Travel: | 200mm |
| Type: | Grinding Machine | Voltage: | 380V |
| Weight: | 1000kg | ||
| Highlight: | Cast Iron CNC Vertical Grinder Machine,CNC Vertical Grinder Machine Practical,Corrosion Resistance CNC Grinding Machine |
||

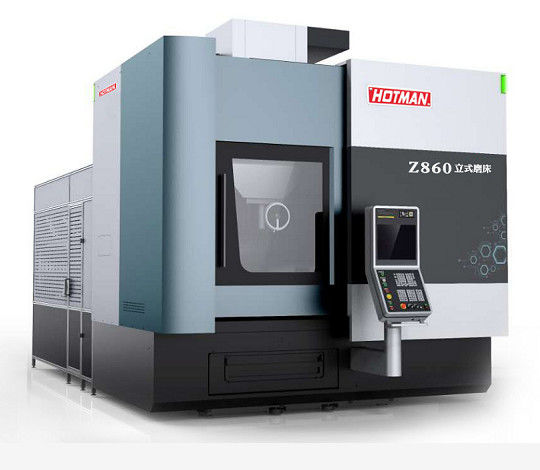

High precision CNC vertical grinding machine-Z860
1. The machine is a gantry structure, composed of double columns, beams and bed to form a closed rigid frame structure. A transverse drag plate is arranged on the beam, and a vertical grinding head is respectively installed on the transverse drag plate.
2. The diamond roller dresser is installed at one end of the table, which is used to trim the side and the bottom surface respectively.
3. The machine tool control adopts German Siemens or Japan FANUC system, which automatically controls the vertical and transverse feed of the grinding head, hydraulic drive of the workbench, and is equipped with hand-held electric handwheel.
4. Cooling filter system: When grinding and grinding wheel dressing, the workpiece is cooled and the grinding wheel is washed. Filter using magnetic separator, paper filter and natural settlement three filtration. The coolant flow rate is 600
Standard accessories:
|
Special control system for Siemens grinding machines |
Set |
|
MPG electronic hand wheel |
Set |
|
Full cover protective sheet metal |
Group |
|
Table drive system |
Set |
|
Magnetic paper tape filter device |
Piece |
|
Grinding wheel spindle |
Piece |
|
Static pressure turntable |
Group |
| Grating scale | Set |
|
Diamond pen and fixing base |
Set |
|
Roller sand repair device |
Group |
| Cooling water tank | Group |
| Operation manual | Set |
|
Machine tool service tool (Toolbox) |
Set |
|
Machine tool horizontal foundation screws and foundation foot pads |
Set |
|
Grinding wheel |
2pieces |
