Universal Cylindrical Grinding machine with B axis, 2 external grinding wheels and 1 internal grinding wheel

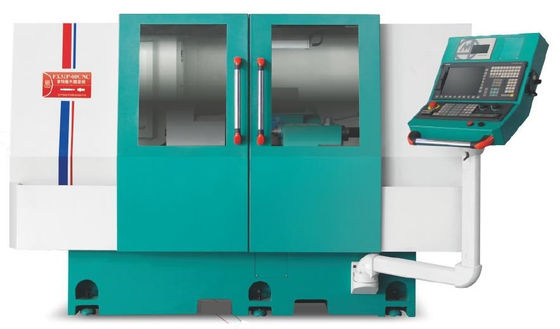

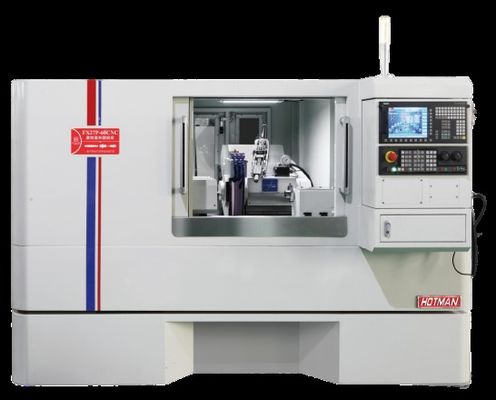

Large Image : Universal Cylindrical Grinding machine with B axis, 2 external grinding wheels and 1 internal grinding wheel

Product Details:

Place of Origin:	China
Brand Name:	HOTMAN
Certification:	CE
Model Number:	W32-75CNC

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	RMB1/SET
Packaging Details:	WOODEN BOOX
Delivery Time:	60DAYS
Payment Terms:	T/T
Supply Ability:	30

Contact Now

Detailed Product Description

Product Name:	High Precision Turrent Universal Cylindrical Grinding Machine With B Axis, Internal Grinding Axis	Machining Workpice Diamter:	5-320mm(customization Acceptable）
Machining Workpice Length:	10-750mm	B Axis Rotaory Angle:	360 Degrees
External Griniding Spindle:	Maxium Equipped With 2 External Spindle	Internal Griniding Spindle:	1 External Spindle
Max. Grinding Diameter:	200mm	Max. Grinding Length:	1000mm
Overall Dimensions:	1800×1400×1400mm	Table Speed:	2-20m/min
Table Swivel Angle:	±5°	Tailstock Taper:	Morse No.3
Tailstock Travel:	150mm	Weight:	1800Kg
Workhead Motor Power:	0.75KW	Workhead Speed Range:	40-400rpm
Highlight:	Universal Cylindrical Grinding machine with B axis , Cylindrical Grinder with external grinding wheels , Internal grinding wheel Cylindrical Grinder

high precision turrent universal cylindrical grinding machine with B axis, internal grinding axis

Machine host description

Structural characteristics

1.High rigid bed structure

2.High precision and high power water-cooled motorized spindle

3.High bearing capacity of plastic precision shovel table

4.Japan C3 precision ball screw drive table

5. Heidenhain 50 nm grating scale feedback (optional)

6. Fixed/rotary precision workpiece head holder with air flotation (optional)

7.High rigidity Air float tailstock (optional)

8.Flexible and varied option configuration
