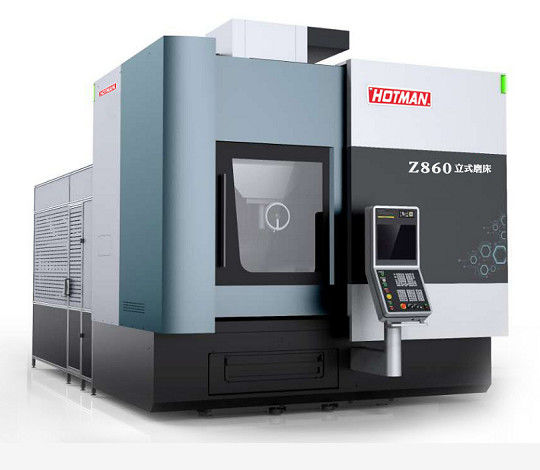

7.5KW CNC Vertical Grinding Machine with 500mm Max Height

7.5KW CNC Vertical Grinding Machine with 500mm Max Height
7.5KW CNC Vertical Grinding Machine with 500mm Max Height

Large Image :  7.5KW CNC Vertical Grinding Machine with 500mm Max Height

Product Details:
Place of Origin: China
Brand Name: HOTMAN
Certification: CE
Model Number: Z860
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: RMB1/SET
Packaging Details: WOODEN BOOX
Delivery Time: 60DAYS
Payment Terms: T/T
Supply Ability: 30
Contact Now
Detailed Product Description
Coolant Tank Capacity: 100L Grinding Wheel Diameter: 200-400mm
Grinding Wheel Motor Power: 7.5kw Grinding Wheel Speed: 1400r/min
Gross Weight: 3500kg Max Grinding Height: 500mm
Max Load Weight: 500kg Net Weight: 3000kg
Overall Dimension: 2180x1850x2400mm Product Name: Vertical Grinding Machine
Table Size: 400x1000mm Table Speed: 0-3m/min
Table Swivel Angle: -5°~+20° Workpiece Spindle Motor Power: 2.2kw
Workpiece Spindle Speed: 50-400r/min
Highlight:

7.5KW CNC Vertical Grinder

,

CNC Vertical Grinder Antiwear

,

Industrial CNC Grinding Equipment

Z860 Hotman 7.5KW CNC Vertical Grinder
Industrial High Precision CNC Grinding Machine
Key Specifications
Attribute Value
Coolant Tank Capacity 100L
Grinding Wheel Diameter 200-400mm
Grinding Wheel Motor Power 7.5kw
Grinding Wheel Speed 1400r/min
Gross Weight 3500kg
Max Grinding Height 500mm
Max Load Weight 500kg
Overall Dimension 2180x1850x2400mm
Table Size 400x1000mm
Table Speed 0-3m/min
Table Swivel Angle -5°~+20°
Workpiece Spindle Motor Power 2.2kw
Workpiece Spindle Speed 50-400r/min
Quality Assurance
  • 12-month warranty for the whole machine
  • Purchased parts warranty matches manufacturer's warranty (minimum 12 months)
  • 24-hour response time for service requests
  • 48-hour problem diagnosis and solution implementation
  • Free technical service and maintenance during warranty period (excluding human factors)
Machine Description

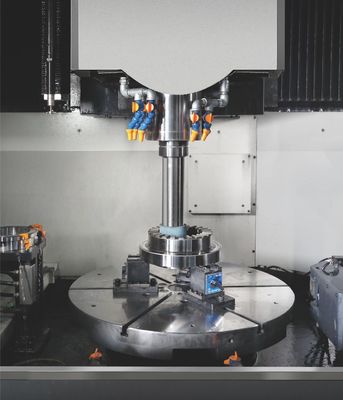

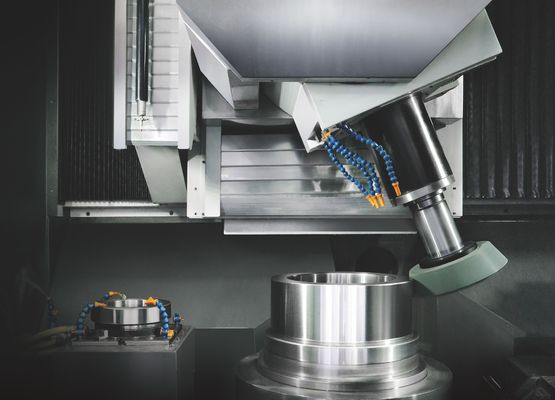

This gantry-style CNC vertical grinder features a rigid double-column frame structure with beam and bed components. The transverse drag plate on the beam accommodates the vertical grinding head.

Key features include:

  • Diamond roller trimmer for precise side and bottom surface finishing
  • Siemens or FANUC CNC control system for automated operation
  • Triple-stage filtration system (magnetic separator, paper filter, natural settlement)
  • 600L coolant flow rate for effective cooling during operation
  • Automatic centralized lubrication system for all feed axes
  • Fully enclosed design for easy maintenance and cleaning
Precision Parameters
Category Parameter Value
Machining Accuracy Roundness 0.0015mm
Machining Accuracy Concentricity 0.0025mm
Machining Accuracy Surface roughness 0.2um
Processing Capacity Max outside diameter 860mm
Processing Capacity Internal grinding range 50-500mm
Processing Capacity Max grinding height 600mm
Processing Capacity Max table load 800kg
Grinding Wheel Spindle Speed range 2000-8000rpm
Grinding Wheel Spindle Diameter range 40-305mm
Work Table Diameter 800mm
Work Table Speed range 5-200rpm
Standard Configuration
Component Quantity Unit
Host Machine 1 Piece
Grinding wheel CNC 1 Set
Diamond roller trimmer 1 Set
Vertical feed grating 1 Set
Transverse feed grating 1 Set
Electric cabinet and control cabinet 1 Set
Cooling system 1 Set
Automatic lubrication system 1 Set
ATC grinding wheel library 1 Set
